H1B1 H2B2 H2S Pole Mounts Illuminator Indoor Mounts

H2B2

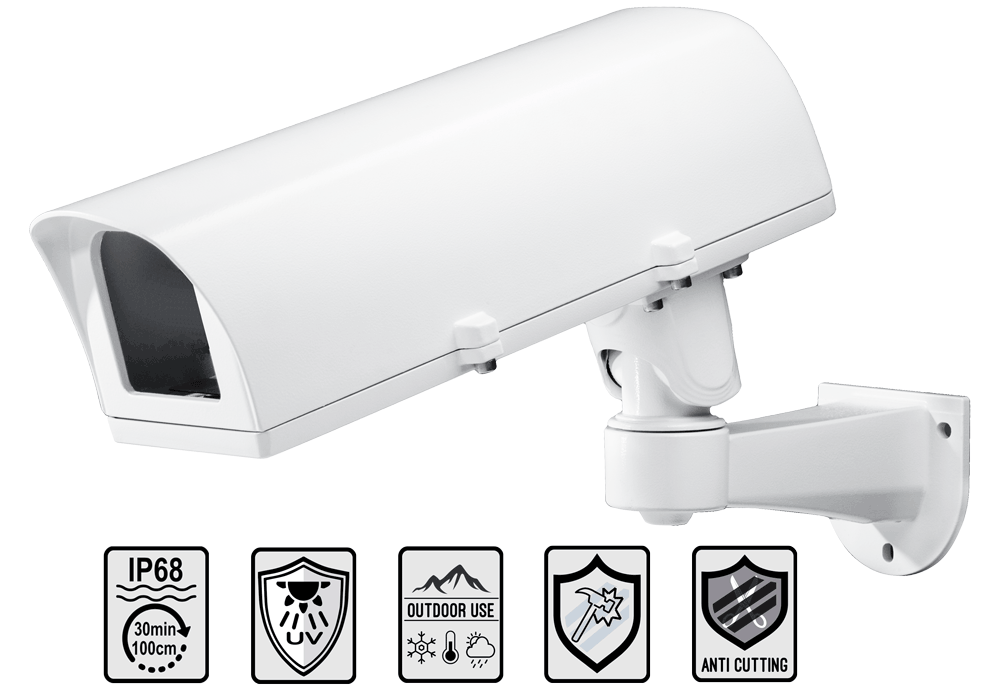

Side-opening aluminium camera housing

  • DESCRIPTION - H2 Housing & B1 Bracket

    A truly surveillance camera enclosure needs to be strong enough to protect camera from bad environment. It also needs to perform effective and have enough reliability to keep up with camera.

    Expansion made easy ! H2B2 never let you down !

  • General - Main features
    • Robust housing designed
    • Side-Hinged Opening
    • Constructed by Aluminium Alloy
    • Internal-cable-managed bracket
    • Patented swivel-tilt lock
    • Super Weatherproof to IP68
    • Submersible down to -100cm/30 mins
    • Usable area: W110xH90xL320mm
    • Anti-UV Powder Coating
    • Optional functions:heater,blower




  • H2 Housing
  • B2 Bracket

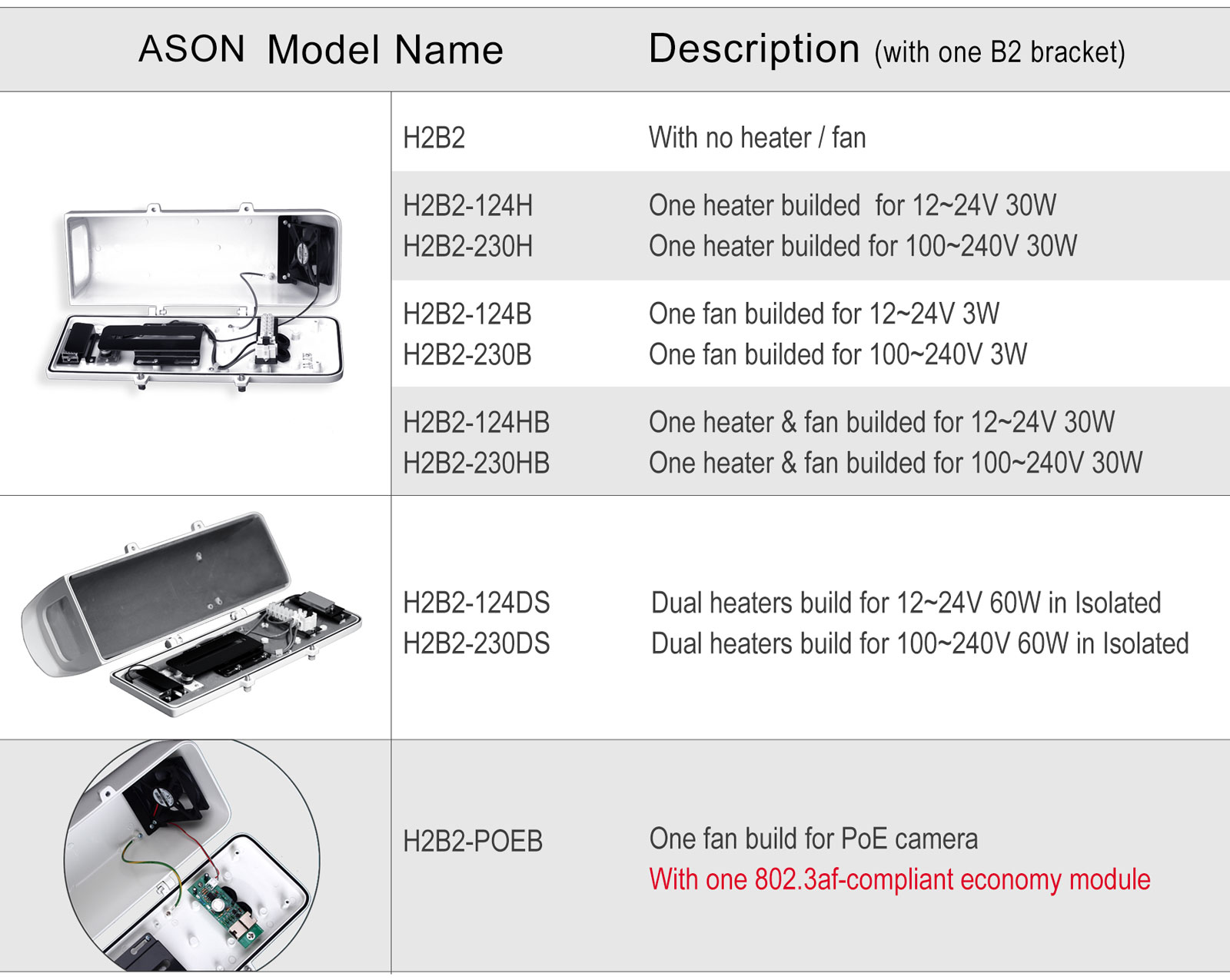

  • Optional

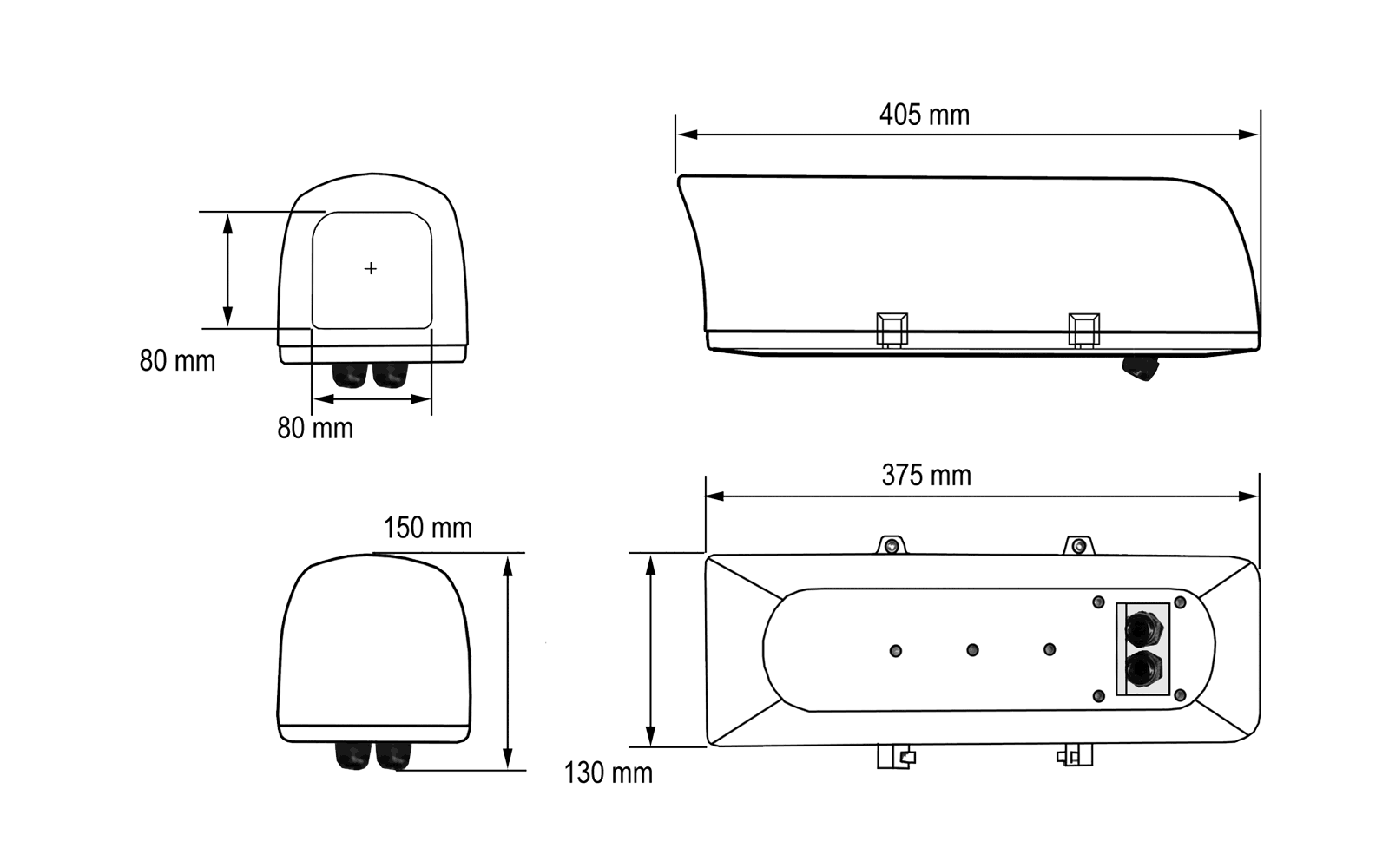

TECHNICAL DRAWING

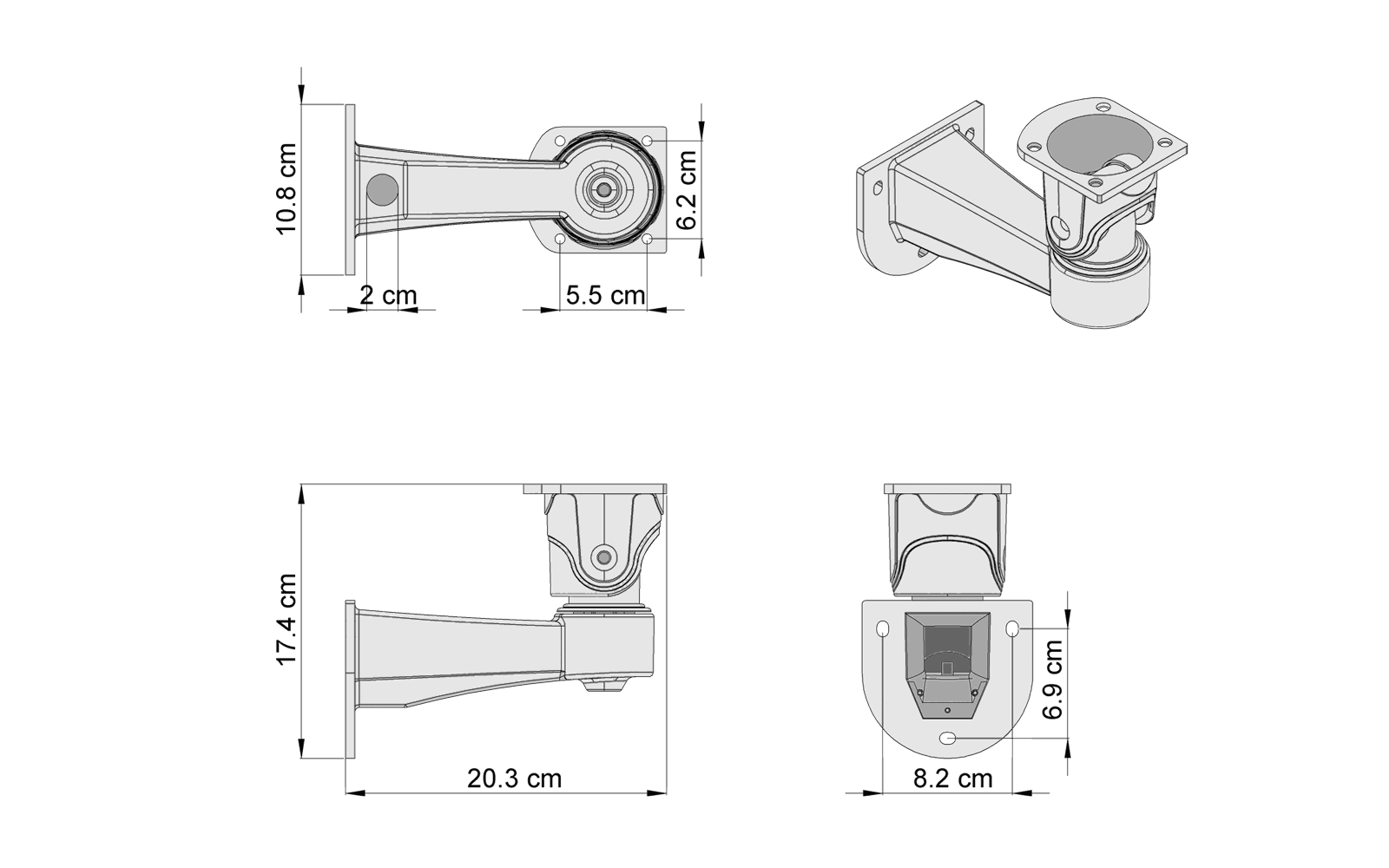

TECHNICAL DRAWING



Version with PM57 for pole mounting
Version with IR6060 for dark area
