H1B1 H2B2 H2S Pole Mounts Illuminator Indoor Mounts

H1B1

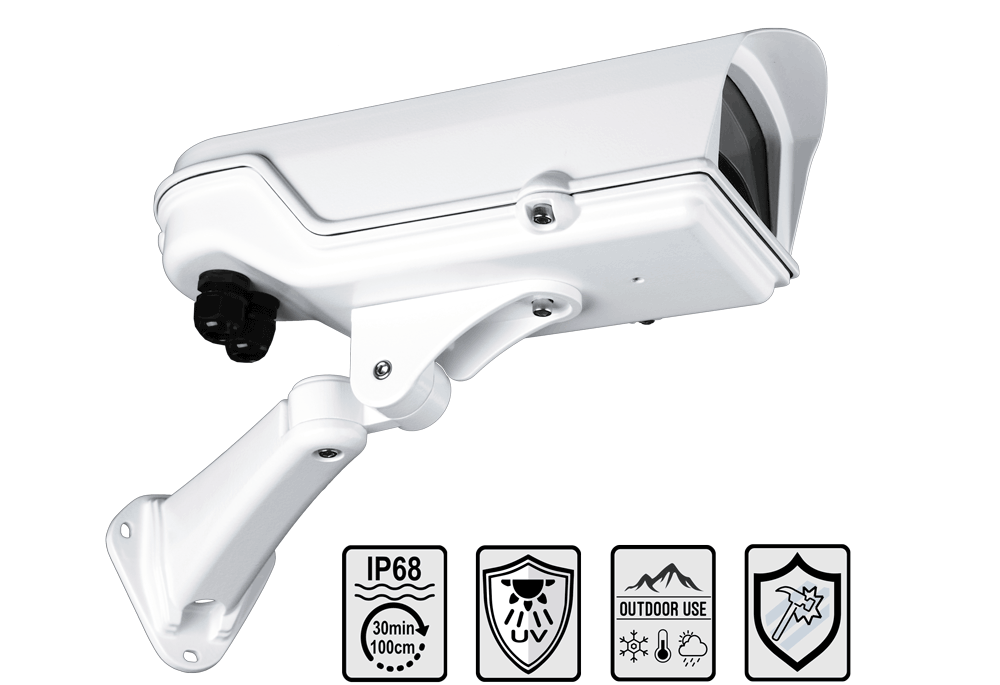

Top-opening aluminium camera housing

  • DESCRIPTION - H1 Housing & B1 Bracket

    H1B1 housing system made by die-castings process which in high quality aluminium alloy ensure the best durability and reliability, and have been taken excellent design to easy installation and service.

    A super waterproof enclosure or a robust construction that protect your high performance camera ! With the H1B1S you get both.

  • General - Main features
    • Robust housing designed
    • High Reliability Aluminium Die-cast
    • Constructed by Aluminium Alloy
    • Usable area: W110xH70xL250mm
    • Super Weatherproof to IP68
    • Submersible down to -100cm/30 mins
    • Anti-UV Powder Coating

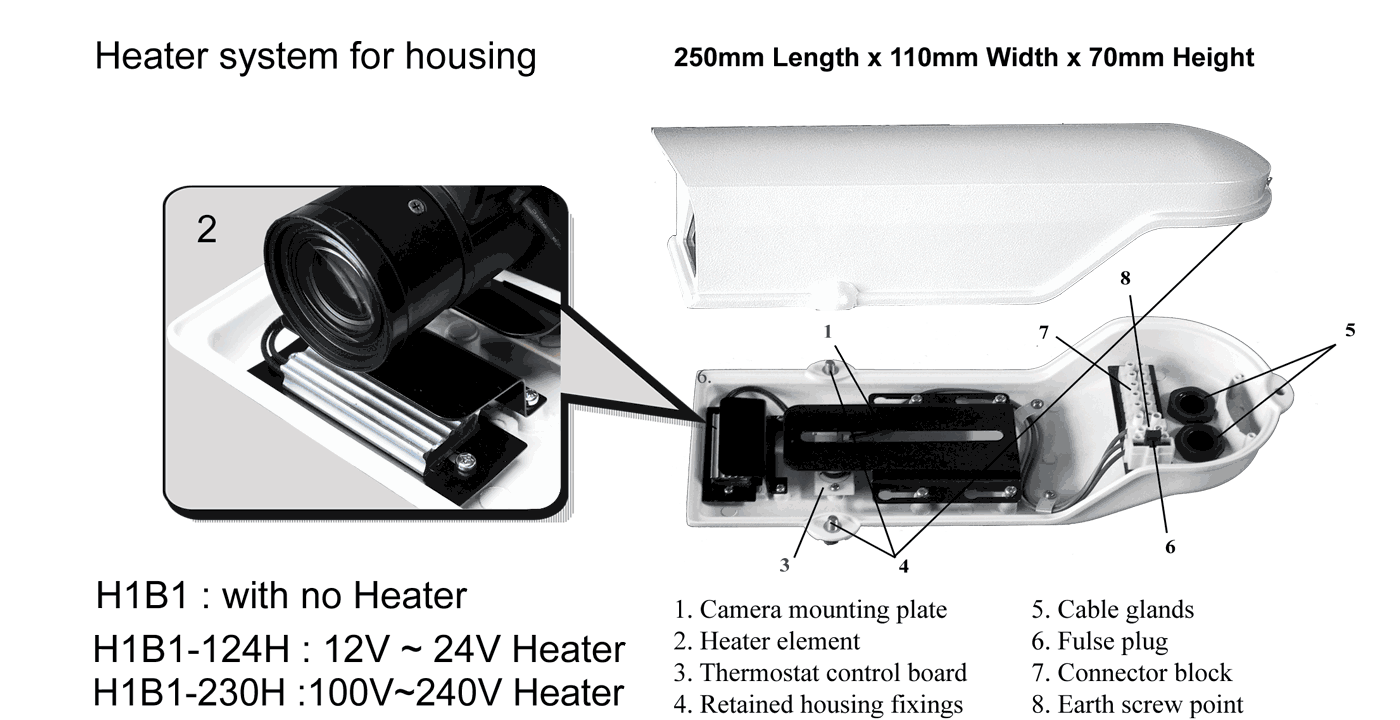

    • Optional functions:heater,blower




  • H1 Housing
  • B1 Bracket
  • Optional

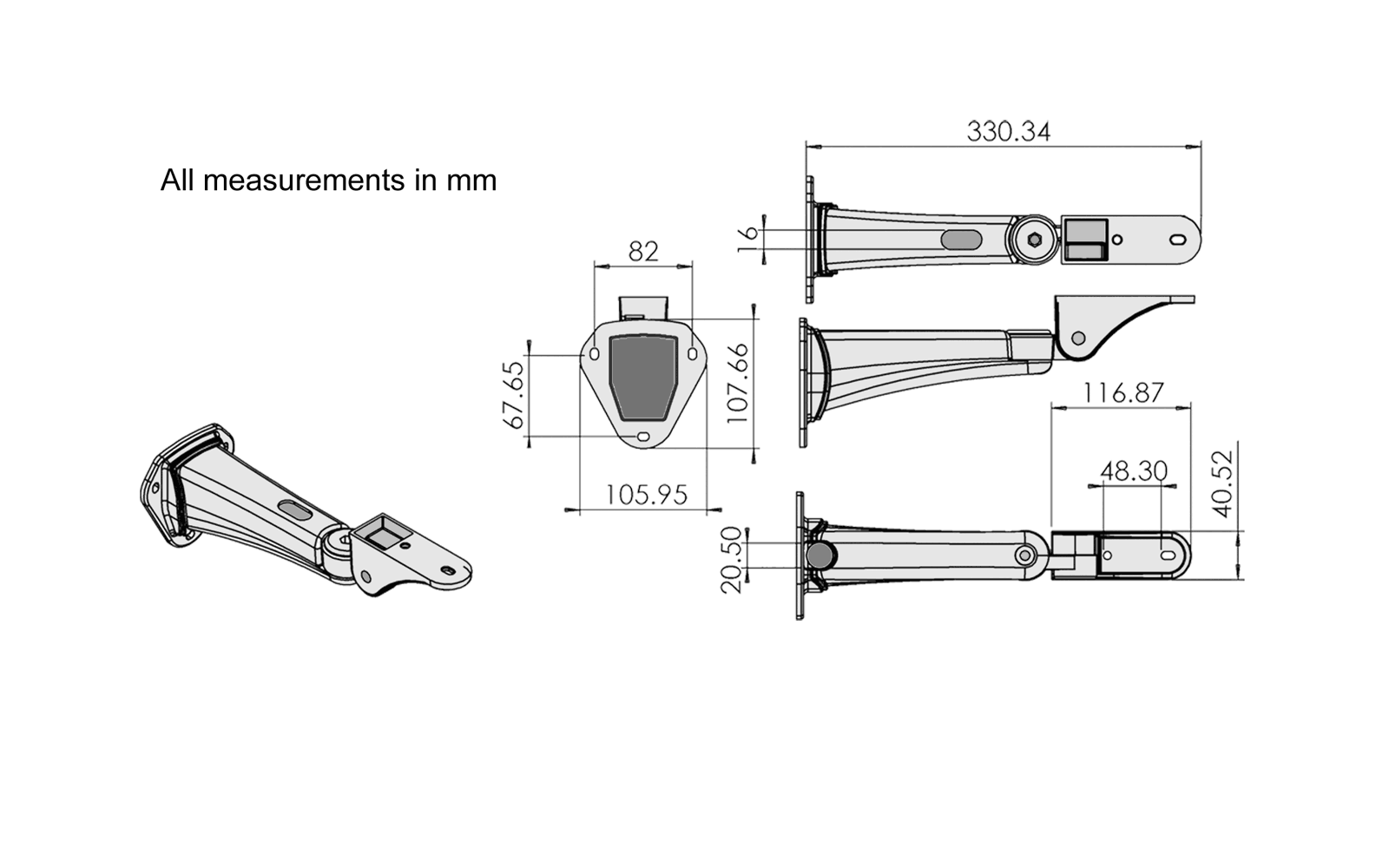

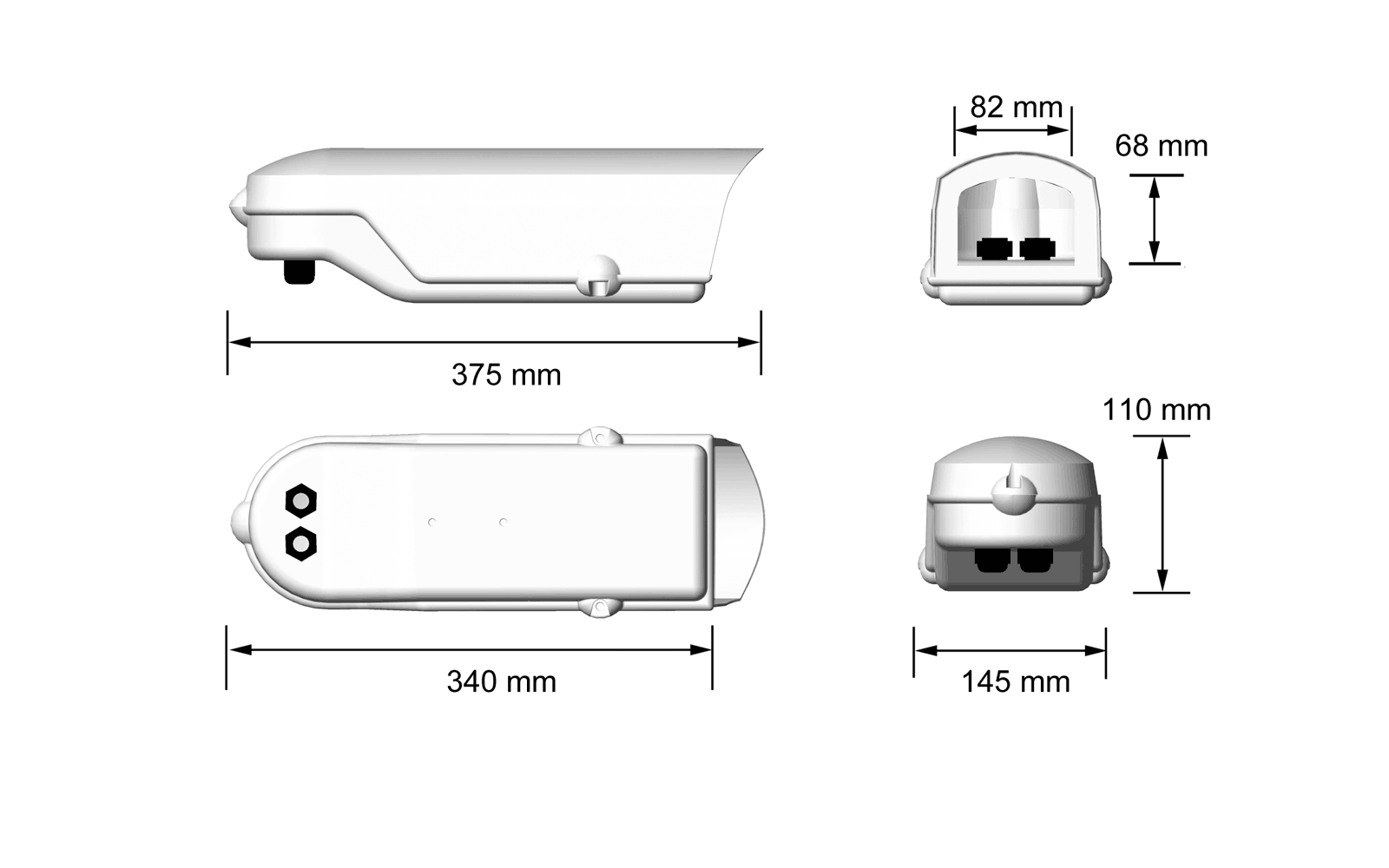

TECHNICAL DRAWING

TECHNICAL DRAWING



Version with PM57 for pole mounting
Version with IR6060 for dark area
